1.2.2 Hardware installation guide
This article
covers the hardware installation process for all Starlink terminals in the
Orbius portfolio. Follow the model-specific Starlink setup guide for physical
mounting instructions.
Before you begin
Confirm all
pre-requisites in Article 1.1 are met. Do not proceed if the site survey has
not been completed and signed off.
Installation guides by terminal model
|
Terminal |
Starlink setup guide |
Specification sheet |
|
Starlink Mini |
||
|
Starlink Enterprise |
||
|
Starlink Performance Gen 2 (former Flat High Performance) |
||
|
Starlink Performance Gen 3 |
General installation guidance

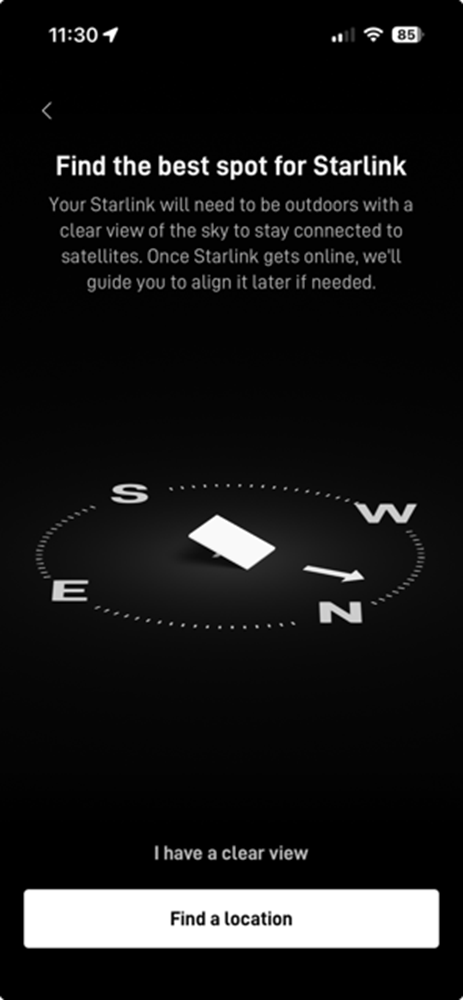

• Use the Starlink App to position the terminal in the
optimal direction, the app provides tilt and rotation recommendations
• Mount the antenna at the validated obstruction-free
position identified during the site survey
• Spacing: maintain a minimum of 1.5 m between
multiple Starlink antennas to avoid inter-terminal interference
• Route the cable from the terminal to the indoor
equipment following the pre-planned route from the site survey
• Power on the terminal and wait for it to initialise, this typically takes 3–5 minutes on first boot
L2VPN deployment: edge router connection
For L2VPN deployments, connect the edge router/switch directly to the
Starlink UT via RJ45 Ethernet cable.
The port on the edge device must be configured in 802.1Q trunk mode before powering up the terminal.
The port on the edge device must be configured in 802.1Q trunk mode before powering up the terminal.

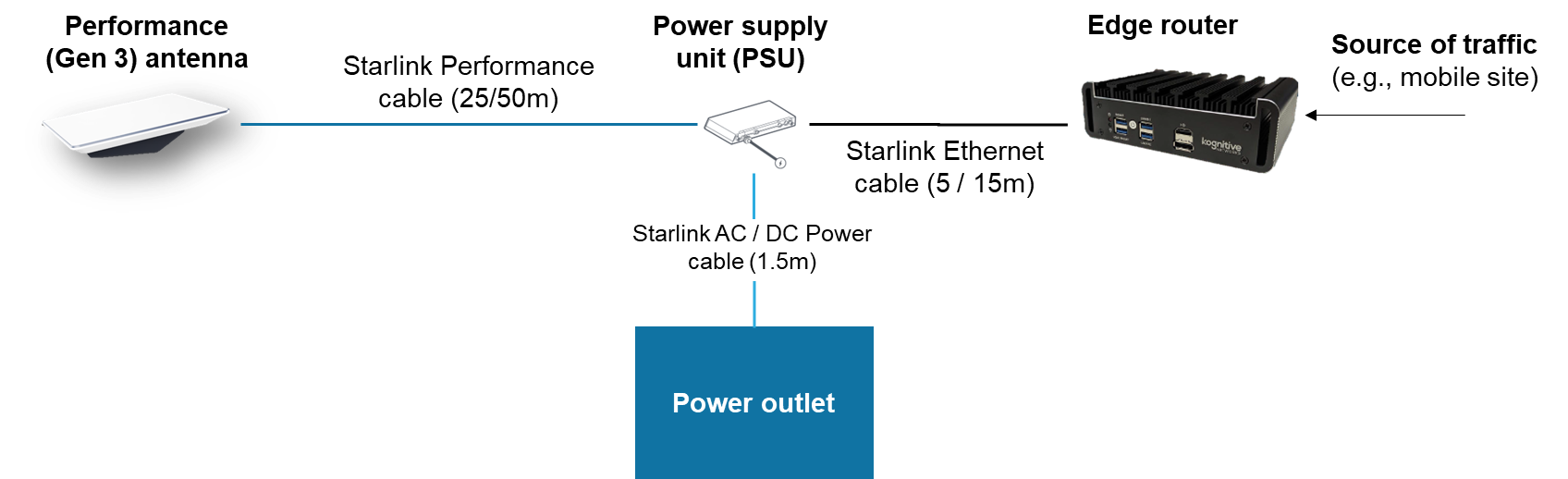

L2VPN site wiring diagram (Site with Performance Gen 3 antenna)
